to Calculate and Give the Cutting length of stirrups for column & Beam
 |
| Stirrups |
Column
A column or pillar is a compression
structural member which transmit load through them which comes from the above
structural member. For the
purpose of wind or earthquake
engineering,
columns may be designed to resist lateral forces. Columns are frequently used
to support beams or arches on which the upper parts of walls or ceilings
rest.
structural member which transmit load through them which comes from the above
structural member. For the
purpose of wind or earthquake
engineering,
columns may be designed to resist lateral forces. Columns are frequently used
to support beams or arches on which the upper parts of walls or ceilings
rest.
There are two components on column i.e.
a)
Concrete
Concrete
b)
Reinforcement
Reinforcement
a.
Main
reinforcement /Vertical Steel Rod
Main
reinforcement /Vertical Steel Rod
b.
Stirrups
Stirrups
Calculation of Length of stirrup
Stirrups is the member of column which are
provided to hold the main reinforcement rebars together in column or an RCC
structure. Stirrups are placed at proper intervals that is
150mm for columns to prevent them from buckling. Also, they protect RCC
structures from collapsing during earthquakes or any seismic activities.
provided to hold the main reinforcement rebars together in column or an RCC
structure. Stirrups are placed at proper intervals that is
150mm for columns to prevent them from buckling. Also, they protect RCC
structures from collapsing during earthquakes or any seismic activities.
 |
| Stirrups |
First, we find the cover of the Structure
Clear Cover
of Column = 40 mm
of Column = 40 mm
Size
of Column = (300 x 300) mm
of Column = (300 x 300) mm
Hook
= 10 D (where, D= Dia of Stirrup Bar)
= 10 D (where, D= Dia of Stirrup Bar)
Assume
Bar Dia=8,
Bar Dia=8,
Generally,
stirrups used 8mm dia bar upto 25mm main bar, greater than 25mm the stirrups
bar dia used 10mm.
stirrups used 8mm dia bar upto 25mm main bar, greater than 25mm the stirrups
bar dia used 10mm.
 |

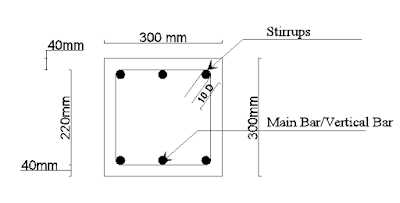

| Column Detail |
Hook
= 10 * 8 = 80mm
= 10 * 8 = 80mm
But
hook is two = 2 * 80 =160 mm
hook is two = 2 * 80 =160 mm
One
side length of stirrups is,
side length of stirrups is,
=
Side of Column – Clear cover (both side)
Side of Column – Clear cover (both side)
=
300 – (2 * 40)
300 – (2 * 40)
=
220 mm
220 mm
Now
the cutting length of Stirrups is given as
the cutting length of Stirrups is given as
=
Side length (for four side) + Length of hook
Side length (for four side) + Length of hook
=
220 + 220 + 220 + 220 +160
220 + 220 + 220 + 220 +160
=
1040 mm = 1.04m
1040 mm = 1.04m
